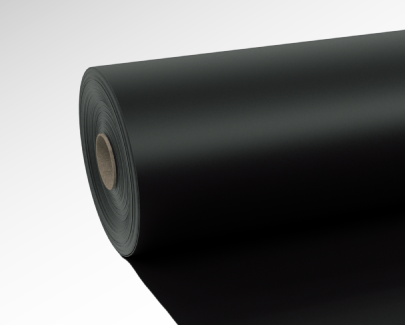

PENEFOL® 750

LDPE membrane used to protect foundations against radon gas, aggressive, pressure and penetrating water.

PENEFOL ® 750 is the time-tested and most commonly used waterproofing membrane of the entire product line. It is made of low density polyethylene (LDPE) and is resistant to chemicals.

The membrane has excellent mechanical strength, it resists aggressive water and root plant growth. Therefore, it is suitable as a house insulation both in the city and in the countryside.

It protects against radon up to medium risk. To determine the thickness of the PENEFOL ® 750 membrane, measure the radon volume (OAR) activity in the soil air and contact us. We will calculate which membrane is the most appropriate in the respective case.

Practical use

Membrane with a thickness of 1.0 mm to 2.0 mm is mostly used as a waterproof insulation of building structures. Whether you use PENEFOL ® 750 as waterproofing membrane or radon barrier, in both cases it is necessary to weld the membrane watertight. Individual strips are connected exclusively by hot-air or hot-wedge welding, without use of open flames. Protect its both sides with IZOLTECH H synthetic geotextile to avoid UV light.

Czech Quality

PENEFOL ® 750 is produced in our factory in Žďár nad Sázavou, CZECH REPUBLIC. It was first offered to customers in 1992. LDPE membrane PENEFOL ® 750 is one of the most popular Czech waterproofing membranes.

In construction, PENEFOL® 750 is used as:

  • waterproofing of bottom structures at or below the ground level,
  • waterproofing and insulation against aggressive water and radon (up to medium risk),
  • anti-corrosion protection of concrete and ferroconcrete constructions,
  • protection against leakage of silage gutters and fertilizers, chemical tubs in production plants and warehouses,
  • landfill restoration.

In addition, PENEFOL® 750 waterproofing LDPE membrane can be further used as:

  • cut-outs and reinforcements, leather, sports, automotive, and furniture industry,
  • packaging and protective material,
  • various cut-outs and sealing,
  • plates of specific dimensions for various uses.
Material Low Density Polyethylene LDPE
Volumetric weight 750 ± 50 kg/m3
Color black, yellow
Elongation min. 230 %
Tensile strength min. 6 N/mm2, 300 N/50 mm (th. 1 mm)
Resistance against static load method B, meets requirements at 20 kg
Water-tightness method B,  meets requirements at 60 kPa (tl. 1mm)
Odolnost proti nárazu method A - 500 mm, methodB - 350 mm
Skid resistance diameter 336,6 N/50 mm (th. 1 mm)
Equiv. dif. thickness sd diameter 148 m (th. 1 mm)
Cold flex temperature in flexion -20°C without cracks
Straightness meets requirements
Dimensional stability ± 1 %
Thermal resistance -20 °C to + 70 °C
Flammability F
Coefficient of radon diffusion K124/02/95, 13.10-12 ± 1,0.10-12 m2/s
Width [mm] 1000/1400 1000/1400 1000/1400 1000/1400 1000/1400 1000/1400
Thickness [mm] 0,6 0,8 1,0 1,2 1,5 2,0
Length [m] 100 50 50 50 50/40 30
Package [m2/roll] 100/140 50/70 50/70 50/70 50/56 30/42
Surface density [kg/m2] 0,45 0,60 0,75 0,90 1,125 1,5
Weight of package [kg] 45/63 30/42 38/53 45/63 56/63 45/63

Bližší informace o produktu naleznete v sekci ke stažení.
