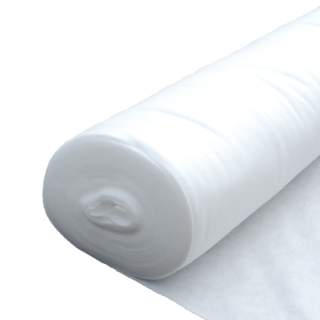

IZOLTECH S
The geotextile is used as a mechanical protection against waterproofing membrane damage.
The geotextile is used as a mechanical protection against waterproofing membrane damage.
IZOLTECH S is made using the technology of punctures of 100% polypropylene shearing. It is used in particular to protect the pond or roof foil from undesirable effects. S-membrane is the strongest of all the IZOLTECH products.
Geotextile is produced with volumetric weights of 200–1300 g/m². We recommend using IZOLTECH S 300 (300 g/m²) to protect waterproofing membrane.
Geotextile IZOLTECH S is suitable as an insulation component of:
| IZOLTECH S 200 | IZOLTECH S 300 | IZOLTECH S 500 | |
| Složení | 100% POP střiž | 100% POP střiž | 100% POP střiž |
| Barva | bílá | bílá | bílá |
| Hmotnost [g/m2] | 200 | 300 | 500 |
| Pevnost v tahu MD (EN ISO 10319) | 6,4 kN/m (-0,5kN/m) | 10,2 kN/m (-1,0kN/m) | 21,8 kN/m (-2,3 kN/m) |
| Pevnost v tahu CMD (EN ISO 10319) | 10,5 N/m (-0,5kN/m) | 16,0 kN/m (-1,0kN/m) | 33,7 kN/m (-2,6 kN/m) |
| Tažnost MD (EN ISO 10319) | 130 % (+-25 %) | 125 % (+-30 %) | 130 % (+-15 %) |
| Tažnost CMD (EN ISO 10319) | 115 % (+-20 %) | 110 % (+-30 %) | 114 % (+-15 %) |
| Odolnost proti dynamickému protržení (EN ISO 13433) | 9 mm (+5 mm) | 7 mm (+5 mm) | 4 mm (+3 mm) |
| Odolnost proti statickému protržení (EN ISO 12236) | 1,5 kN/m (-0,2 kN/m) | 3,1 kN/m (-1,0 kN/m) | 5,0 kN/m (-1,0 kN/m) |
